Component Inspection: Notes

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

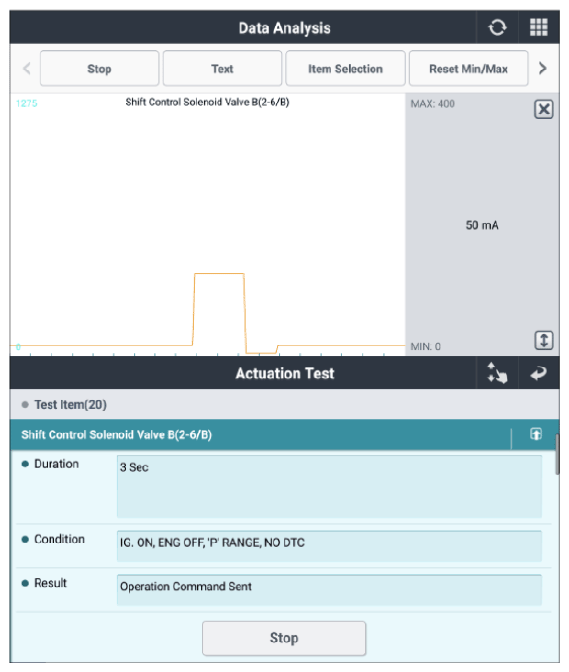

Ignition "ON". NO DTC. Shift lever "P".	Ignition "OFF". Connect KDS to Data Link Connector (DLC). Ignition "ON". Perform "Shift Control Solenoid Valve B (2-6/B)" in "Actuation Test" with KDS. Monitor "Shift Control Solenoid Valve B (2-6/B)" in "Current Data" with KDS.	Fig.1

G14966099

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then Go to "Verification Of Repair " procedure.

No Good

Go to "SHIFT CONTROL SOLENOID VALVE B (2-6/B) RESISTANCE INSPECTION " procedure.
