Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

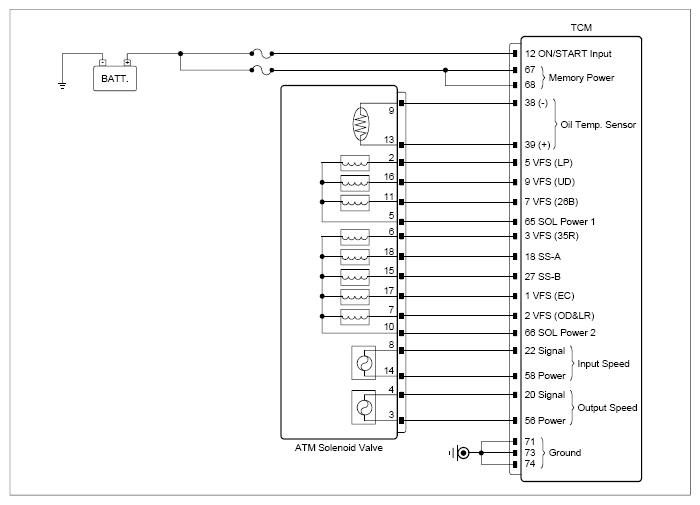

G14966084Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 ATM solenoid valve connector 5 (power) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect the auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 ATM solenoid valve connector 2 (LP) Chassis ground - ∞ (infinity)Ω
ATM solenoid valve connector 2 (LP) TCM connector 5 (LP) Approx. below 1Ω

Good

No Good
