DTC P0732-00: Gear 2 Incorrect Ratio: General Description

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Input speed sensor value must be equal output speed sensor value times each gear ratio at each gear position of transmission. That operation value equal with TCM operation value. For example output speed sensor value is 1000 RPM and 2nd speed gear ratio is 2.726 then input speed sensor value must be 2726 RPM.

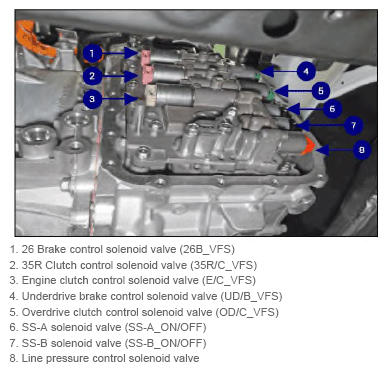

G14966057Courtesy of KIA MOTORS AMERICA, INC.
