Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
 ■ Oil-pressure characteristics input (A/T replacement)
  1. Ignition "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Input (A/T Replacement)" and Go to "Verification Of Repair " procedure.
 Fig.1 to 5

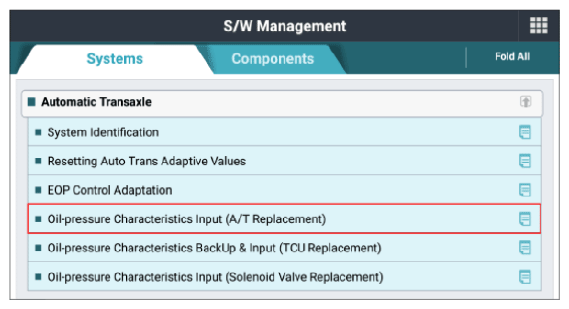

G14966051Courtesy of KIA MOTORS AMERICA, INC.

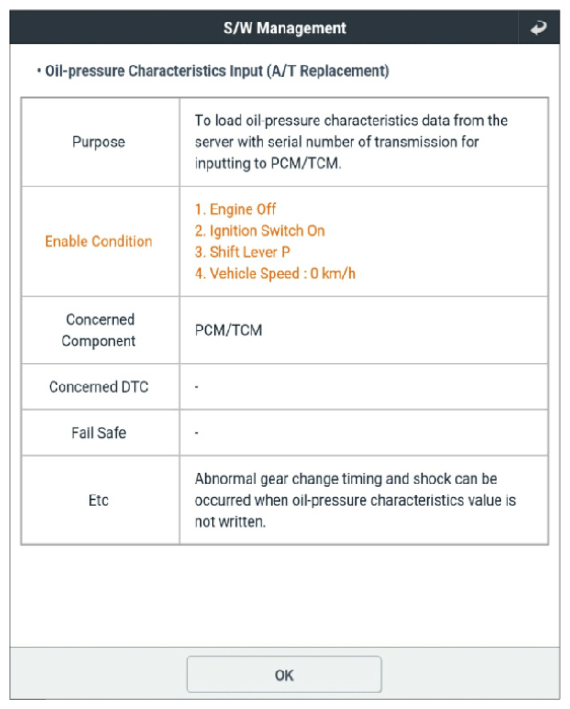

G14966052Courtesy of KIA MOTORS AMERICA, INC.

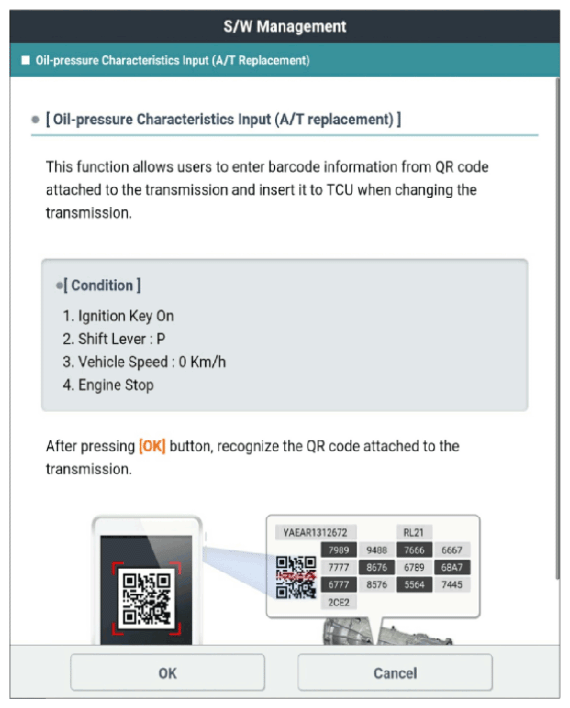

G14966053Courtesy of KIA MOTORS AMERICA, INC.

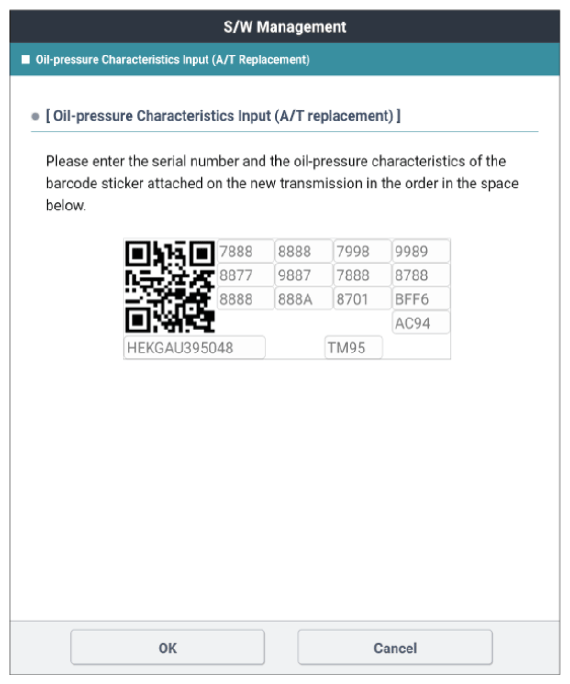

G14966054Courtesy of KIA MOTORS AMERICA, INC.

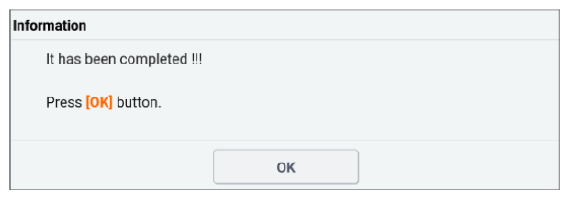

G14966055Courtesy of KIA MOTORS AMERICA, INC.
