Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

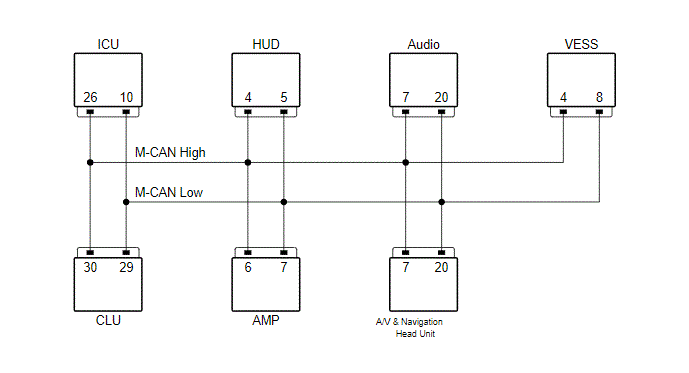

G00671889Courtesy of KIA MOTORS AMERICA, INC.

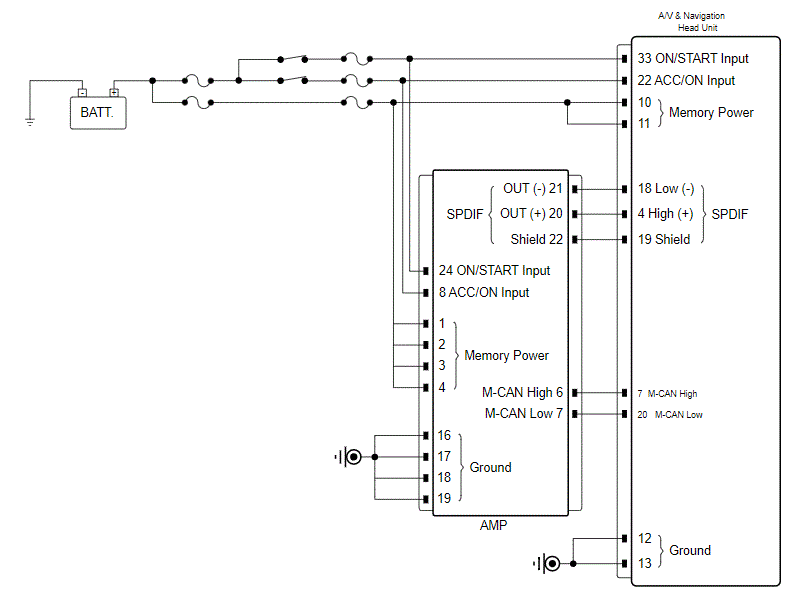

G00671890Courtesy of KIA MOTORS AMERICA, INC.
