CAN Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| CAN Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
| 1. Ignition "OFF". 2. Disconnect the electrical connector(s) from concerned component. |
AVN connector | 7 (M-CAN high) | AMP connector | 6 (M-CAN high) | Approx. below 1Ω |
| AVN connector | 20 (M-CAN low) | AMP connector | 7 (M-CAN low) | Approx. below 1Ω | |

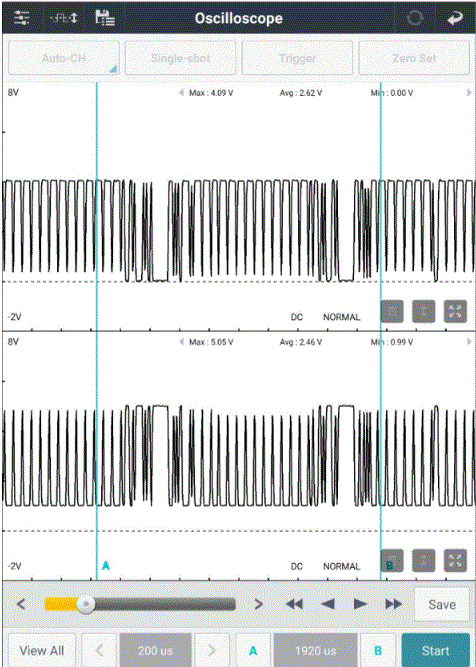

| 1. Ignition "ON". | AVN connector | 7 (M-CAN high) | Chassis ground | - | Fig.1 |
| AVN connector | 20 (M-CAN low) | Chassis ground | - | ||
Good
• Carefully re-do this troubleshooting guide steps.
• If problem still occurs, replace AMP and then go to ("Verification Of Repair ") procedure.
No Good
• If problem still occurs, replace AMP and then go to ("Verification Of Repair ") procedure.
• Repair open or short in circuit and then go to ("Verification Of Repair ") procedure.
