Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

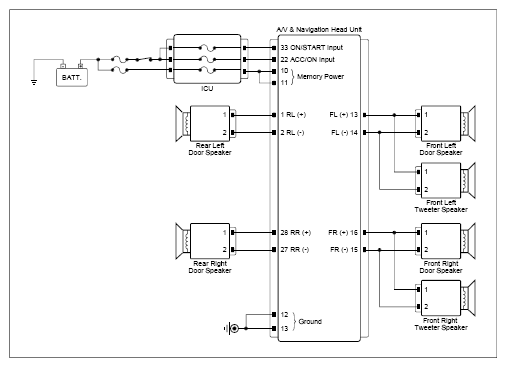

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
AVN connector | 10, 11, 22, 33 (power) | Chassis ground | - | B+ |
| Rear right door speaker connector | 1 (RR+) | Chassis ground | - | Approx. 6.3V | |
| Rear right door speaker connector | 2 (RR-) | Chassis ground | - | Approx. 6.3V | |
| AVN connector | 12, 13 (ground) | Chassis ground | - | Approx. below 1Ω | |
|
Rear right door speaker connector | 1 (RR+) | AVN connector | 28 (RR+) | Approx. below 1Ω |
| Rear right door speaker connector | 2 (RR-) | AVN connector | 27 (RR-) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
