Monitor DTC Status

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

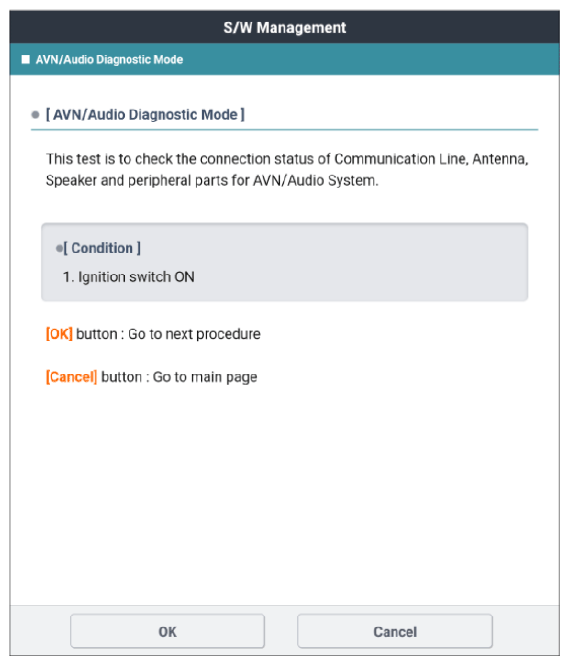

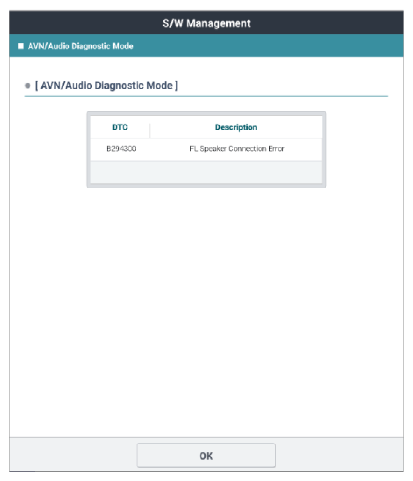

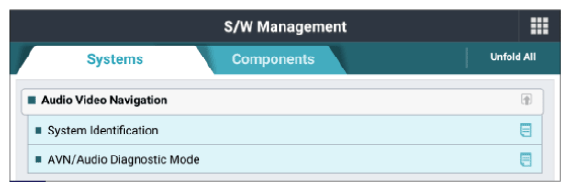

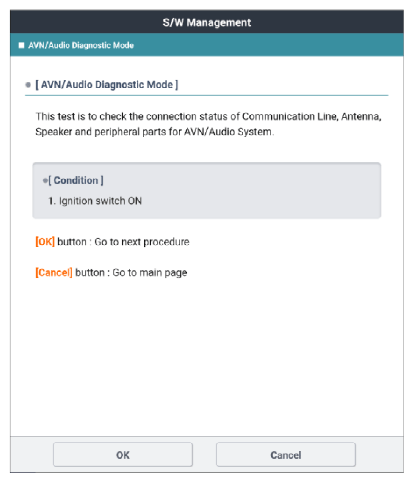

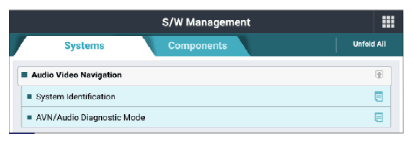

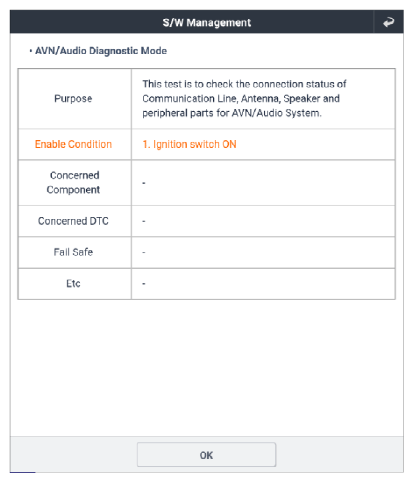

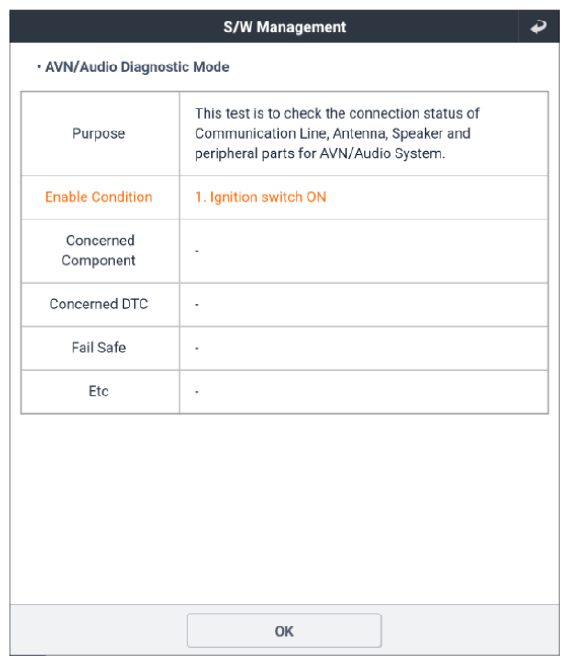

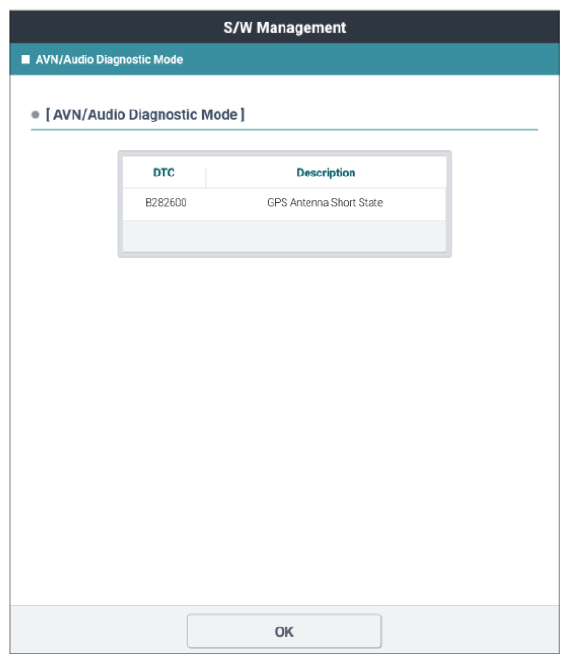

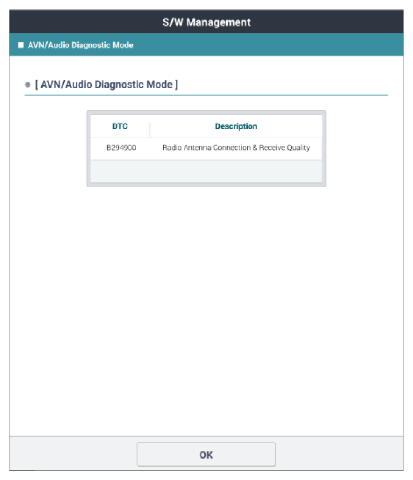

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Select "Vehicle S/W Management" with KDS. Select "AVN/Audio Diagnostic Mode" under "Vehicle S/W Management".	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Go to "WIRING INSPECTION " procedure.

History/Pending Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification Of Repair " procedure.
