Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

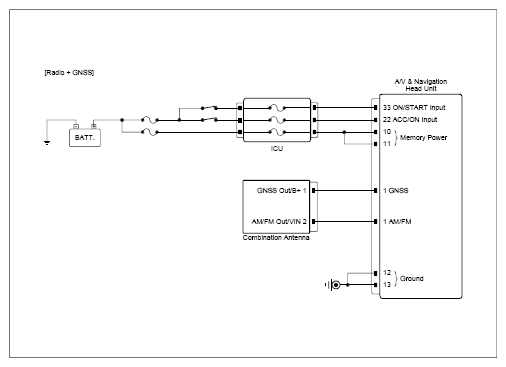

G14966322

Courtesy of KIA MOTORS AMERICA, INC.

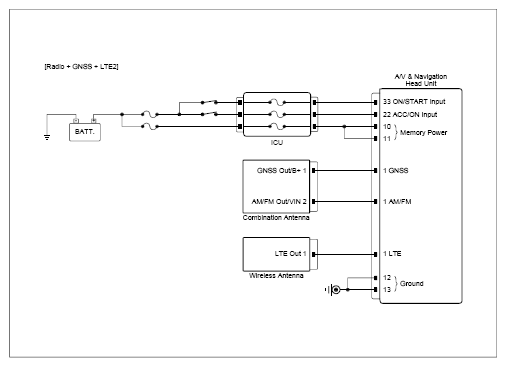

G14966323

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Combination antenna connector	2 (AM/FM Out/VIN)	Chassis ground	-	Approx. 0V
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	Combination antenna connector	2 (AM/FM Out/VIN)	Chassis ground	-	∞ (infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the AVN and go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the combination antenna and go to "Verification Of Repair " procedure.
