Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

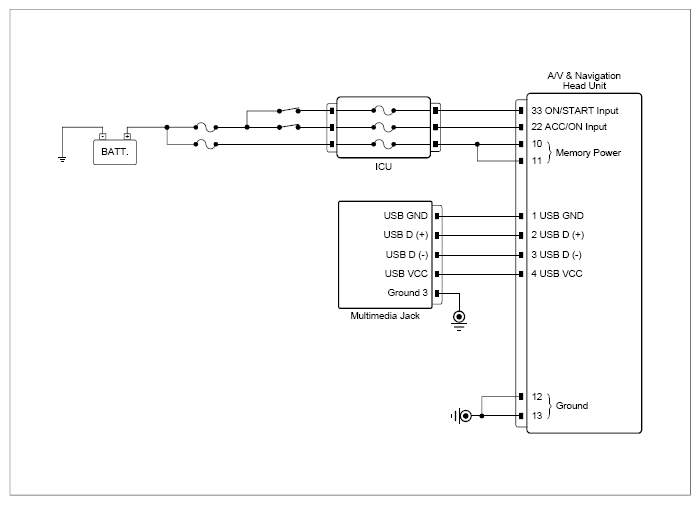

G14966287

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Multimedia jack connector	4 (voltage common collector)	Chassis ground	-	Approx. 5V
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	Multimedia jack connector	(USB ground)	AVN connector	1 (USB ground)	Approx. below 1Ω
	Multimedia jack connector	(D+)	AVN connector	2 (D+)	Approx. below 1Ω
	Multimedia jack connector	(D-)	AVN connector	3 (D-)	Approx. below 1Ω
	Multimedia jack connector	(voltage common collector)	AVN connector	4 (voltage common collector)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the AVN and go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the multimedia jack and go to "Verification Of Repair " procedure.
