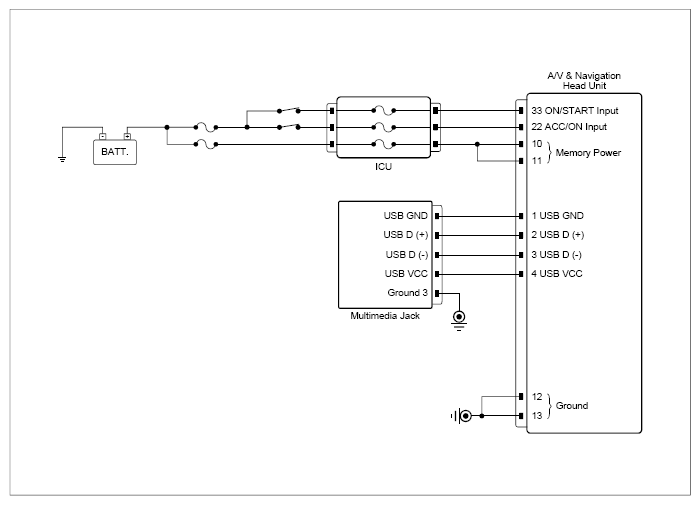

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Multimedia jack connector | 4 (voltage common collector) | Chassis ground | - | Approx. 5V |
|
Multimedia jack connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |
| Multimedia jack connector | (USB ground) | AVN connector | 1 (USB ground) | Approx. below 1Ω | |
| Multimedia jack connector | (D+) | AVN connector | 2 (D+) | Approx. below 1Ω | |
| Multimedia jack connector | (D-) | AVN connector | 3 (D-) | Approx. below 1Ω | |
| Multimedia jack connector | (voltage common collector) | AVN connector | 4 (voltage common collector) | Approx. below 1Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the AVN and go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the multimedia jack and go to "Verification Of Repair " procedure.
