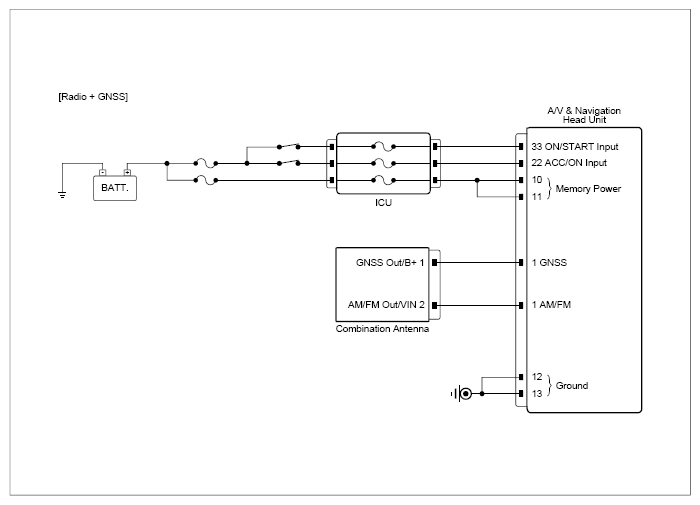

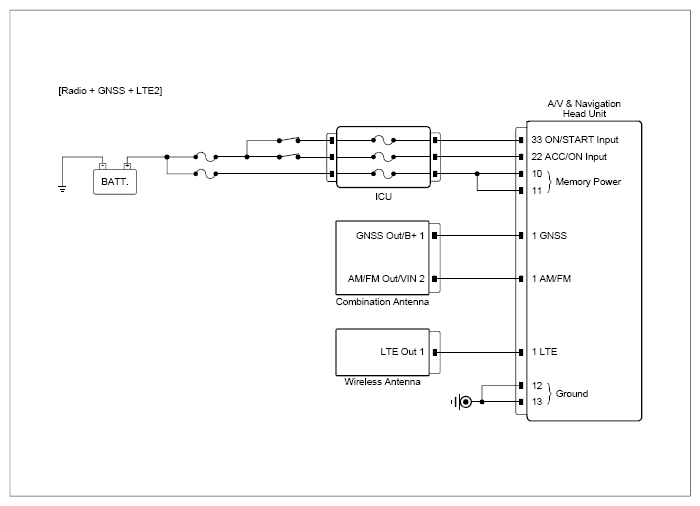

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Combination antenna connector | 1 (GNSS out/B+) | Chassis ground | - | Approx. 0V |
|
Combination antenna connector | 1 (GNSS out/B+) | Chassis ground | - | ∞ (infinity)Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the AVN and go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the combination antenna and go to "Verification Of Repair " procedure.
