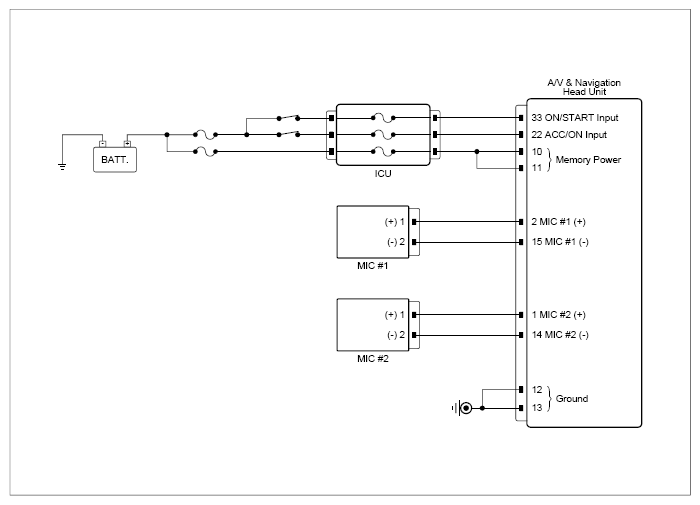

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
MIC #1 connector | 1 (+) | AVN connector | 2 (+) | Approx. below 1Ω |
| MIC #1 connector | 2 (-) | AVN connector | 15 (-) | Approx. below 1Ω | |
| MIC #1 connector | 1 (+) | AVN connector | 1 (+) | Approx. below 1Ω | |
| MIC #1 connector | 2 (-) | AVN connector | 14 (-) | Approx. below 1Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the AVN and go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the handsfree MIC and go to "Verification Of Repair " procedure.
