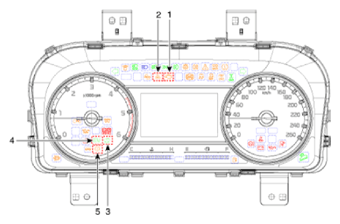

[Warning Lamp]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Items	Description	Related Control Module
1. MIL Lamp Courtesy of KIA MOTORS AMERICA, INC.	Lamp ON: Engine Management System (EMS) fault
2. Service Lamp Courtesy of KIA MOTORS AMERICA, INC.	Lamp ON: Hybrid related system fault
3. READY Lamp Courtesy of KIA MOTORS AMERICA, INC.	After ignition START Lamp ON: HEV in normal condition is ready to drive (Engine may or may not start) Lamp OFF: HEV is not ready to drive During driving Lamp ON: HEVis readyto drive Lamp Blinking: HEV in faulty condition (HEV in limited operating mode) Lamp OFF: HEV is not ready to drive	HPCU (HCU)
4. EV MODE Lamp Courtesy of KIA MOTORS AMERICA, INC.	Lamp ON: EV mode (Electric motor only) Lamp OFF: HEV mode (Engine running)	HPCU (HCU)
