Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

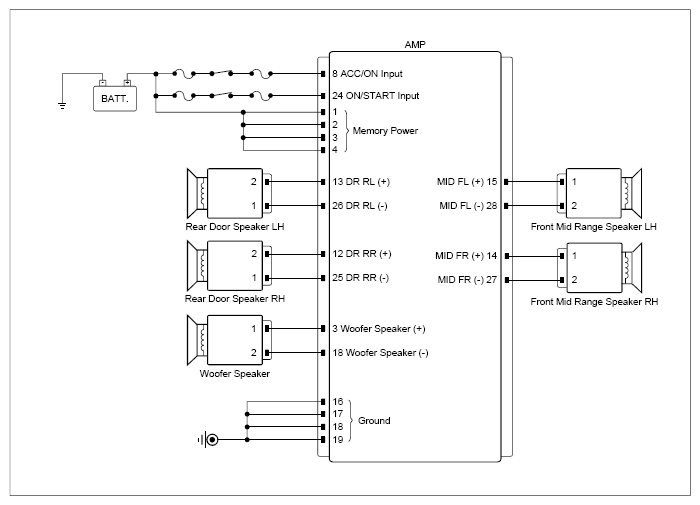

| Module Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
AMP connector | 1, 2, 3, 4 (Memory power) | Chassis ground | - | B+ |
| AMP connector | 8 (ACC/ON input) | Chassis ground | - | B+ | |
| AMP connector | 24 (ON/START Input) | Chassis ground | - | B+ | |
|
AMP connector | 16, 17, 18, 19 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "Speaker Inspection" procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.

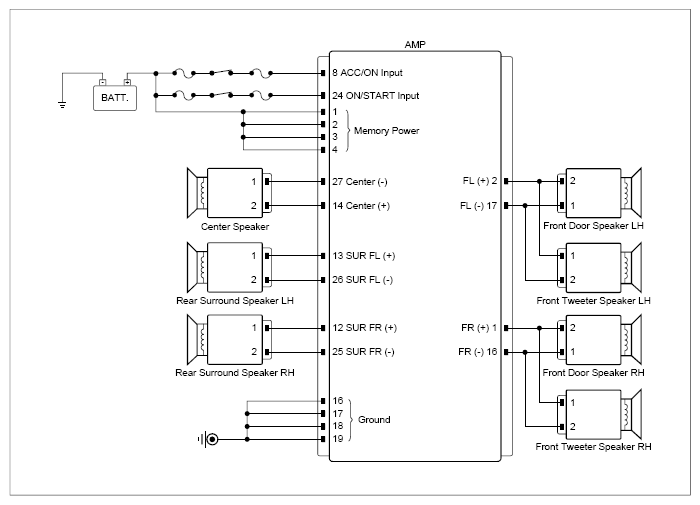

| Speaker Inspection (KRELL) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
Front door speaker RH connector | 2 (DR FR (+)) | Chassis ground | - | Approx. 11.1V |
| Front door speaker RH connector | 1 (DR FR (-)) | Chassis ground | - | Approx. 11.1V | |
|
Front door speaker RH connector | 2 (DR FR (+)) | AMP connector | 1 (DR FR (+)) | Approx. below 1Ω |
| Front door speaker RH connector | 1 (DR FR (-)) | AMP connector | 16 (DR FR (-)) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
