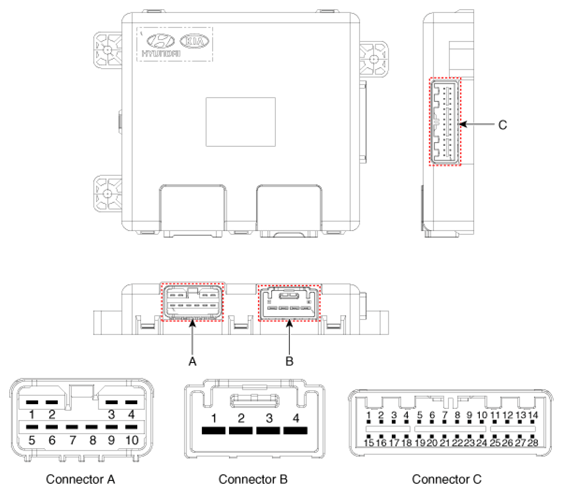

Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | Cushion extension motor (Forward) | Battery (+) | Slide switch signal (Forward) |
| 2 | Recline motor (Forward) | Battery (+) | Recline switch signal (Forward) |
| 3 | Rear height motor (Up) | Ground | Front tilt switch signal (Up) |
| 4 | Slide motor (Forward) | Ground | Rear height switch signal (Up) |
| 5 | Cushion extension motor (Backward) | Cushion extension switch (Forward) | |
| 6 | Recline motor (Backward) | B-CAN (High) | |
| 7 | Front tilt motor (Up) | B-CAN (Low) | |
| 8 | Front tilt motor (Down) | - | |
| 9 | Rear height motor (Down) | - | |
| 10 | Slide motor (Backward) | Slide sensor | |
| 11 | Tilt sensor | ||
| 12 | - | ||
| 13 | Seat position sensor power | ||
| 14 | IGN1 | ||
| 15 | Slide switch signal (Backward) | ||
| 16 | Recline switch signal (Backward) | ||
| 17 | Front tilt switch signal (Down) | ||
| 18 | Rear height switch signal (Down) | ||
| 19 | Cushion extension switch (Backward) | ||
| 20 | Ground | ||
| 21 | - | ||
| 22 | - | ||
| 23 | - | ||
| 24 | Recline sensor | ||
| 25 | Height sensor | ||
| 26 | Cushion extension sensor | ||
| 27 | - | ||
| 28 | Battery (+) | ||
