Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the IMS switch connector (A).

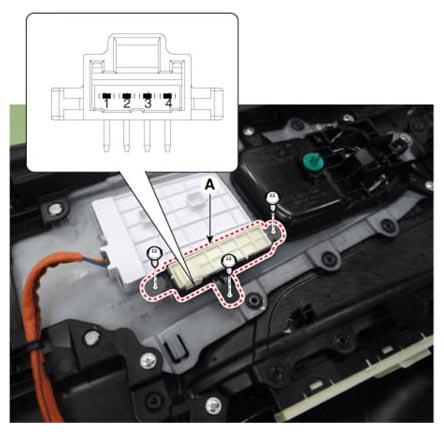

    G14963059Courtesy of KIA MOTORS AMERICA, INC.
  4. When each switch is pressed, check the electricity flow between integrated memory seat switch connector and ground.
    Switch Connector Terminal Resistance (± 1%)
    SET 2 - 3 680 Ω
    Memory 1 1.5 kΩ
    Memory 2 3.3 kΩ
