Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

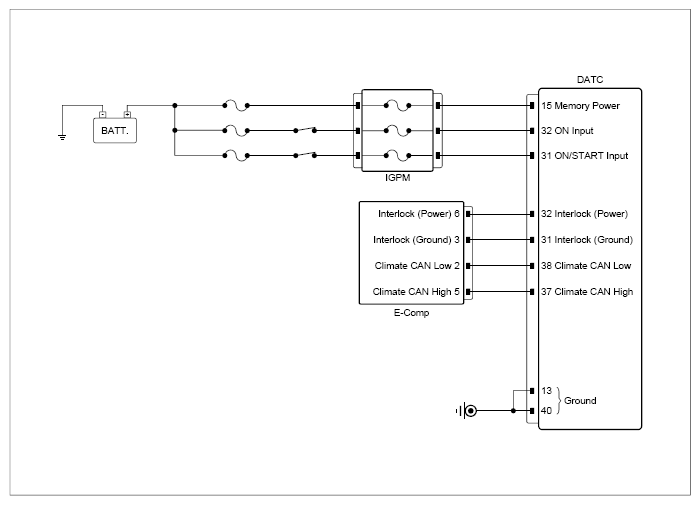

G14963736

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component and A/C Control Module.	E-comp connector	6 (interlock power)	Chassis ground	-	∞ (infinity)Ω
	E-comp connector	3 (interlock ground)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component and A/C Control Module.	E-comp connector	6 (interlock power)	A/C control module connector	32 (interlock power)	Approx. below 1Ω
	E-comp connector	3 (interlock ground)	A/C control module connector	31 (interlock ground)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the BMS, replace the E-comp and Go to "Verification Of Repair " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
