Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

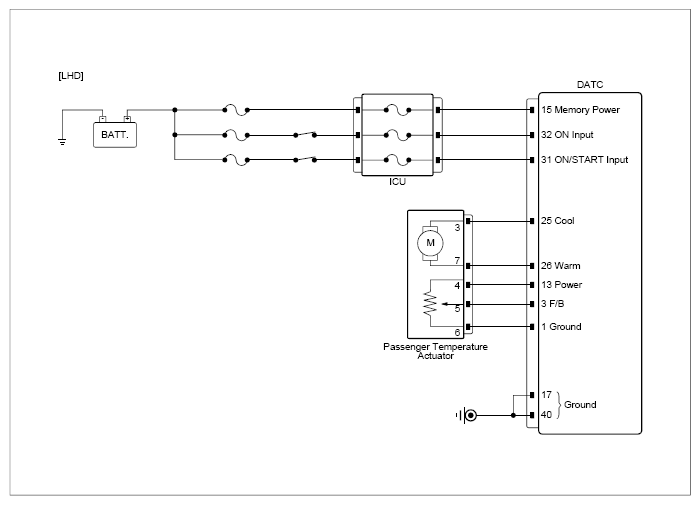

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Passenger temperature actuator connector | 3 (cool) | A/C control module connector | 25 (cool) | Approx. below 1Ω |
| Passenger temperature actuator connector | 7 (warm) | A/C control module connector | 26 (warm) | Approx. below 1Ω | |
| Passenger temperature actuator connector | 3 (cool) | Chassis ground | - | ∞ (infinity)Ω | |
| Passenger temperature actuator connector | 7 (warm) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the A/C control module connector and Go to "Verification Of Repair " procedure.
