Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||

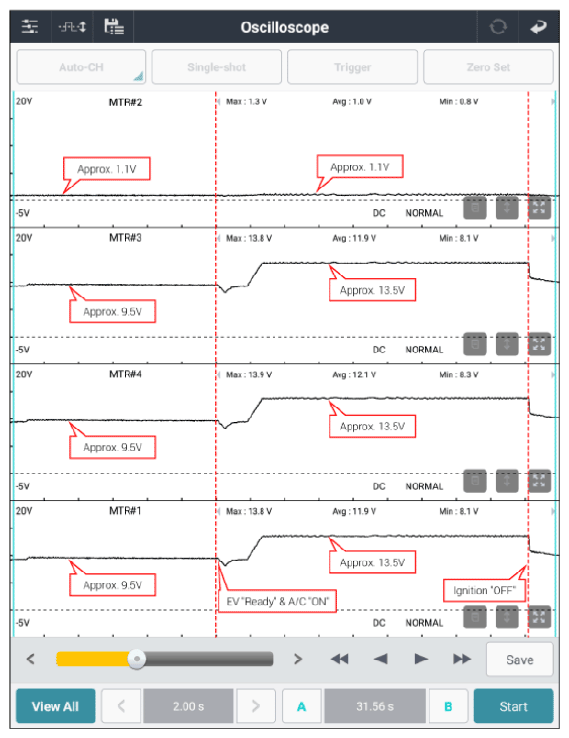

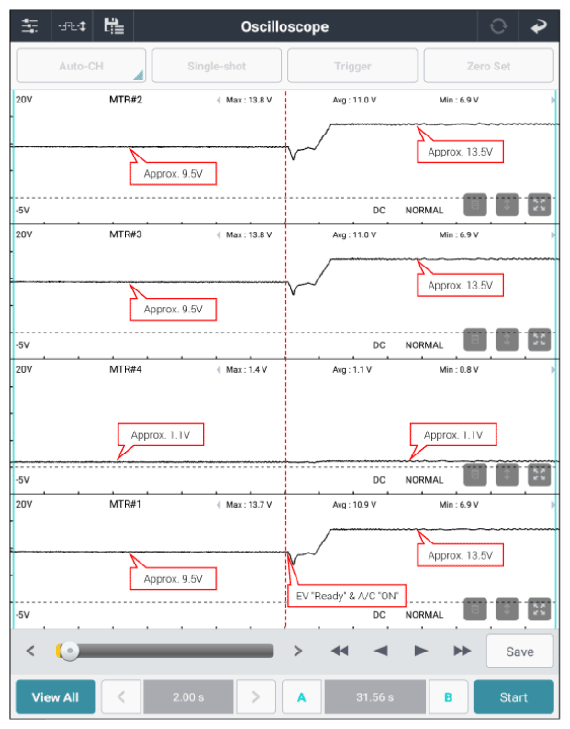

| Oscilloscope (Electronic refrigerant reduced pressure valve) |
|
Electronic refrigerant reduced pressure valve connector | 1 (MTR #2) | Electronic refrigerant reduced pressure valve connector | 2 (MTR #3) | Fig.1 to 2 |
| Electronic refrigerant reduced pressure valve connector | 5 (MTR #4) | Electronic refrigerant reduced pressure valve connector | 6 (MTR #1) | |||
| Power inspection (Electronic refrigerant reduced pressure valve) |
|
Electronic refrigerant reduced pressure valve connector | 3, 4 (Memory power) | Chassis ground | - | B+ |
| Voltage inspection (Electronic refrigerant reduced pressure valve ↔ Chassis ground) |
|
Electronic refrigerant reduced pressure valve connector | 1 (MTR #2) | Chassis ground | - | Approx. 0V |
|
Electronic refrigerant reduced pressure valve connector | 2 (MTR #3) | Chassis ground | - | Approx. 0V | |
|
Electronic refrigerant reduced pressure valve connector | 5 (MTR #4) | Chassis ground | - | Approx. 0V | |
|
Electronic refrigerant reduced pressure valve connector | 6 (MTR #1) | Chassis ground | - | Approx. 0V | |

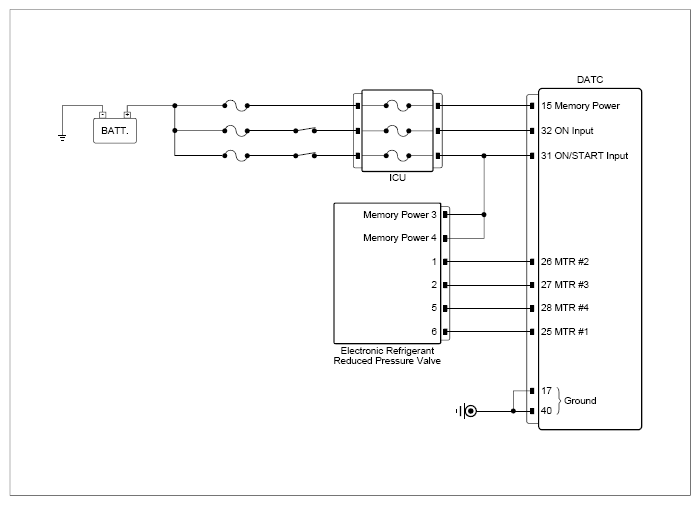

| Open in circuit inspection (Electronic refrigerant reduced pressure valve ↔ DATC) |
|
Electronic refrigerant reduced pressure valve connector | 1 (MTR #2) | DATC connector | 26 (MTR #2) | Approx. below 1Ω |
|
Electronic refrigerant reduced pressure valve connector | 2 (MTR #3) | DATC connector | 27 (MTR #3) | Approx. below 1Ω | |
|
Electronic refrigerant reduced pressure valve connector | 5 (MTR #4) | DATC connector | 28 (MTR #4) | Approx. below 1Ω | |
|
Electronic refrigerant reduced pressure valve connector | 6 (MTR #1) | DATC connector | 25 (MTR #1) | Approx. below 1Ω | |
Case 1 & 2 changed to each other after ignition "ON/OFF"
Case 1 & 2 changed to each other after ignition "ON/OFF"
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuit and wiring, replace the electronic refrigerant reduced pressure valve and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
