Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

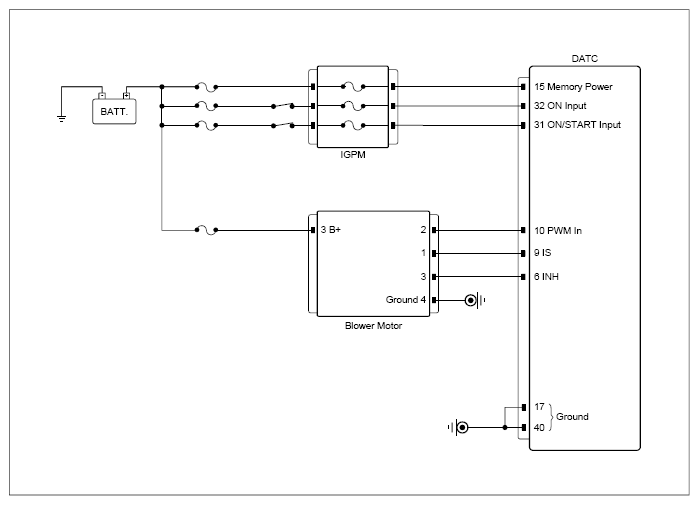

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
A/C control module connector | 10 (PWM in) | Blower motor connector | 2 (signal) | Approx. below 1Ω |
| A/C control module connector | 9 (IS) | Blower motor connector | 1 (IS) | Approx. below 1Ω | |
| A/C control module connector | 8 (INH) | Blower motor connector | 3 (INH) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
