Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM connector (G1.6 T-GDI) | 3, 26, 60 (power) | Chassis ground | - | B+ |
|
ECM connector (G1.6 T-GDI) | 1, 2, 4 (ground) | Chassis ground | - | Approx. below 1Ω |
|
APT connector | 3 (power) | chassis ground | - | Approx. 5V |
| APT connector | 2 (signal) | chassis ground | - | Approx. 0V | |
| APT connector | 1 (ground) | chassis ground | - | Approx. 0V | |
|

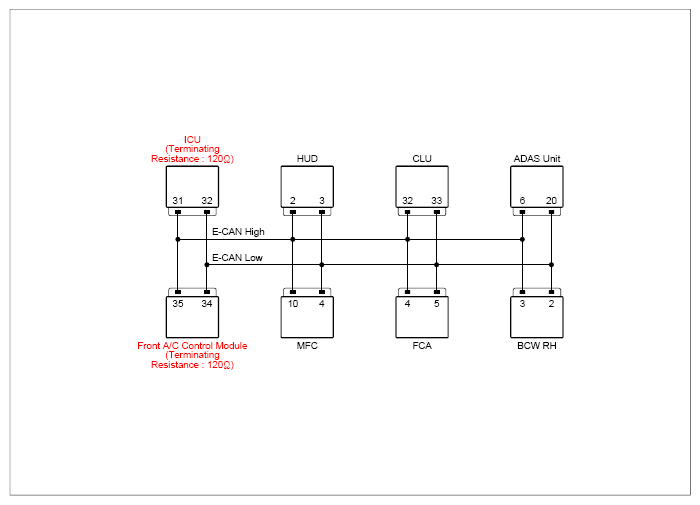

A/C control module connector | 35 (E-CAN high) | Chassis ground | - | Fig.1 |
| A/C control module connector | 34 (E-CAN low) | Chassis ground | - | ||
|

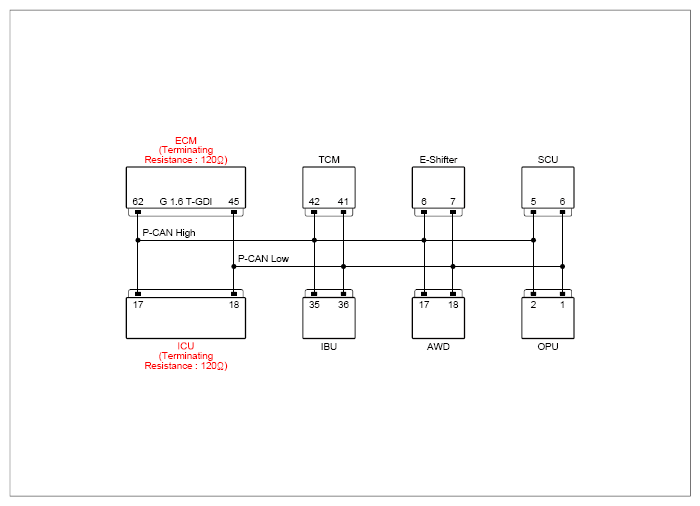

ECM connector (G1.6 T-GDI) | 62 (P-CAN low) | Chassis ground | - | Fig.2 |
| ECM connector (G1.6 T-GDI) | 45 (P-CAN high) | Chassis ground | - | ||
|
A/C control module connector | 35 (E-CAN high) | ICU connector | 31 (E-CAN high) | Approx. below 1Ω |
| A/C control module connector | 34 (E-CAN low) | ICU connector | 32 (E-CAN low) | Approx. below 1Ω | |
| A/C control module connector | 35 (E-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| A/C control module connector | 34 (E-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector (G1.6 T-GDI) | 62 (P-CAN low) | ICU connector | 17 (P-CAN high) | Approx. below 1Ω | |
| ECM connector (G1.6 T-GDI) | 45 (P-CAN high) | ICU connector | 18 (P-CAN low) | Approx. below 1Ω | |
| ECM connector (G1.6 T-GDI) | 62 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector (G1.6 T-GDI) | 45 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| A/C control module (component side) | 35 (E-CAN high) | A/C control module (component side) | 34 (E-CAN low) | Approx. 120Ω | |
| ECM (component side G1.6 T-GDI) | 62 (P-CAN low) | ECM (component side G1.6 T-GDI) | 45 (P-CAN high) | Approx. 120Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the ECM, replace the A/C control module and Go to "Verification Of Repair " procedure.
