Power Window Rear Switch

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

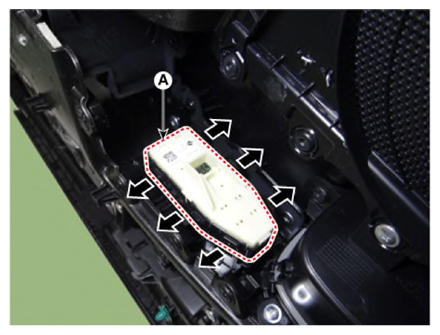

  3. Remove the power window rear switch (A) by pushing the holders in the direction of arrow.
    G14958633Courtesy of KIA MOTORS AMERICA, INC.
