Rear Power Window Motor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

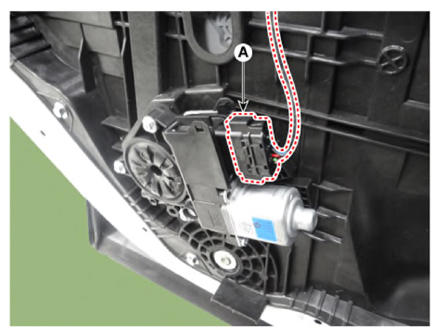

  3. Disconnect the rear power window motor connector (A).
    G14958626Courtesy of KIA MOTORS AMERICA, INC.

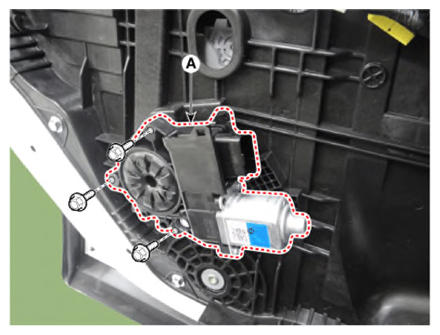

  4. Remove the rear power window motor (A) after removing the mounting bolts.
    G14958627Courtesy of KIA MOTORS AMERICA, INC.
