Front Power Window Motor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

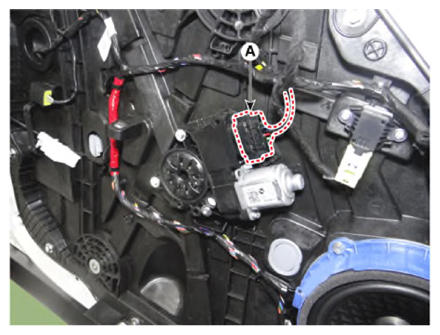

  3. Disconnect the front power window motor connector (A).
    G14958624Courtesy of KIA MOTORS AMERICA, INC.

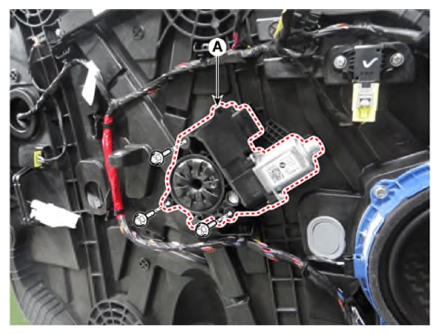

  4. Remove the front power window motor (A) after removing the mounting bolts.
    G14958625Courtesy of KIA MOTORS AMERICA, INC.
