Deployment Outside A Vehicle

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

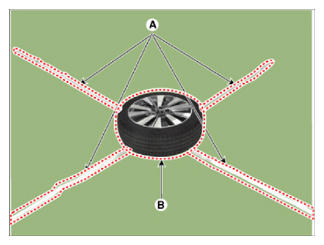

Lay the rope (A) on the floor to form a cross and place the wheeled tire (B) over it.

Courtesy of KIA MOTORS AMERICA, INC.

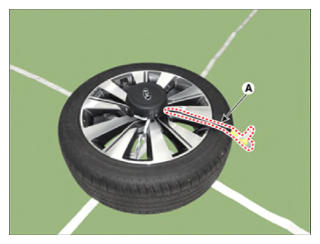

Install the deployment adaptor (0K57A-3U100A) from airbag module/pretensioner.

Courtesy of KIA MOTORS AMERICA, INC.
Fix the airbag module/pretensioner (A) from wheel.
[Airbag Module]

Courtesy of KIA MOTORS AMERICA, INC.

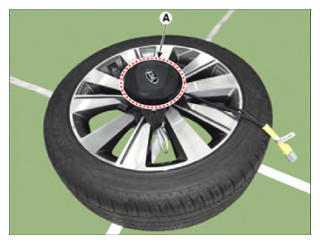

CAUTION: The deployed side of the airbag must face up. The airbag may spring up and cause a serious physical damage to the operator if the deployed side is facing down.

[Pretensioner]

Courtesy of KIA MOTORS AMERICA, INC.

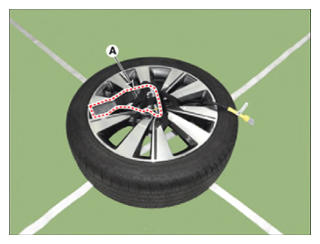

CAUTION: Install the anchor pretensioner with the end of the piston tube facing the floor.

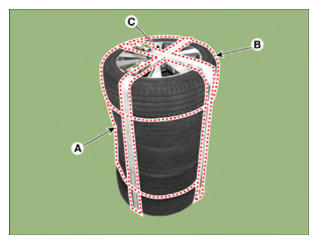

Place three waste tires (A) first, then place wheeled tire (B) on top of the pile.
Secure the tire with the ratchet strap (C).

Courtesy of KIA MOTORS AMERICA, INC.

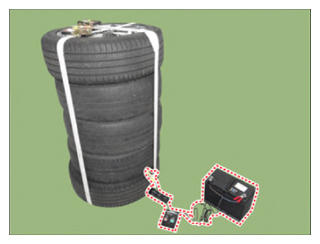

Connect to the battery. Connect the airbag deployment tool (0957A-34100A) to the deployment adapter (0K57A-3U100A).

Courtesy of KIA MOTORS AMERICA, INC.

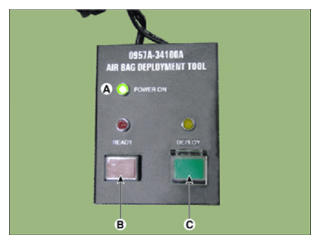

When the POWER ON (A) is illuminated on the airbag deployment tool, press READY (B), and then DEPLOY (C) to deploy the airbag.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: The airbag system generates an explosion-like sound when deployed. Make sure to choose a safe place to avoid any disturbance the procedure may cause.

Information

Airbag deployment can be confirmed by audio (from the intense noise) and visually, as airbags instantly inflate and then gradually deflate.
Place deployed airbags in a sturdy plastic bag, securely seal the bag, and dispose of the bag.

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Allow at least 30 minutes for cooling before handling the airbag system as it generates extreme heat upon deployment.
- Wash your hands thoroughly with soap and water after disposal.
