Deployed Within The Vehicle

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Confirm that each airbag module is securely mounted.
  3. Refer to the following to prepare for the deployment of the airbag system:
    1. Inside the vehicle, remove the connector of the airbag to be deployed.
    2. Connect the deployment adaptor from airbag/pretensioner.
      • For the driver airbag module, remove the connector and connect the deployment adapter. Reattach the module to the steering wheel.
  4. The mechanic shall be located at least 7 meters away from the vehicle.

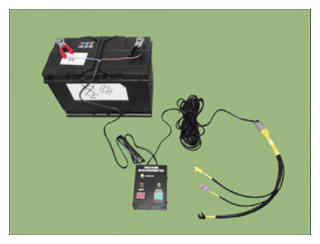

  5. Connect the external battery after connecting the deployment tool (0957A-34100A) from the deployment adaptor.
    1. Battery (12V)
    2. Deployment tool (0957A-34100A)
    3. Deployment adaptor
      • Driver airbag (0K57A-3U100A)
      • Passenger airbag (0K57A-3U100A)
      • Curtain airbag (0K57A-3U100A)
      • Knee airbag (0957A-3F100)
      • Side airbag (0957A-2W100)
      • Seat belt pretensioner (0K57A-3U100A)
      • Anchor pretensioner (0K57A-3U100A)
    G14958303Courtesy of KIA MOTORS AMERICA, INC.

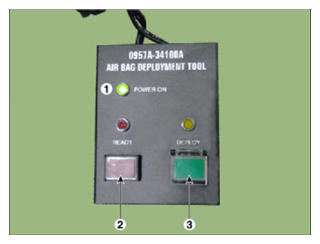

  6. Activate the switch of the airbag deployment tool to deploy the airbag system.
    1. When properly connected to the battery (12 V), the POWER ON (1) will illuminate.
    2. Press and hold READY (2) until the READY (2) lamp illuminate. Then, press DEPLOY (3) to deploy the system.
    G14958304Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The airbag system generates an explosion-like sound when deployed. Make sure to choose a safe place to avoid any disturbance the procedure may cause.

    Information

    Airbag deployment can be confirmed by audio (from the intense noise) and visually, as airbags instantly inflate and then gradually deflate.

  7. Place deployed airbags in a sturdy plastic bag, securely seal the bag, and dispose of the bag.
    G14958305Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Allow at least 30 minutes for cooling before handling the airbag system as it generates extreme heat upon deployment.
    • Wash your hands thoroughly with soap and water after disposal.
