System Initialization

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

System initialization is needed to recognize the closing position of the tailgate to power tailgate module.

The initialization process after battery power reset, system initialization is needed to recognize the maximum opening and closing tailgate position exactly.

The power tailgate operates normally after system initialization is completed.

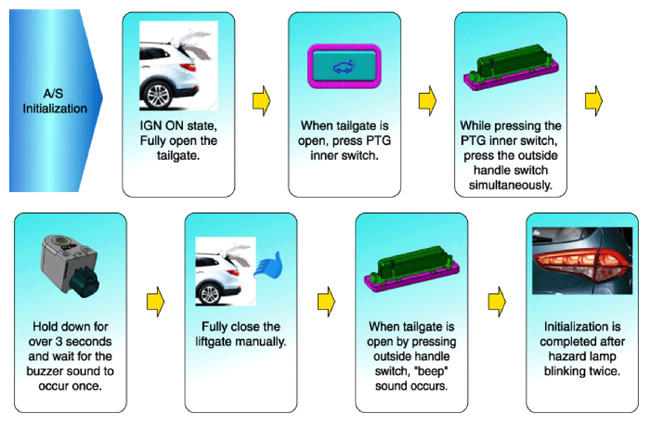

Procedure:

G14958601Courtesy of KIA MOTORS AMERICA, INC.
