Mode Change (Power Tailgate System)

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

After replacing with a new power tailgate module, check for DTC code at all times. If DTC code B24B0 exists, perform power tailgate mode change.

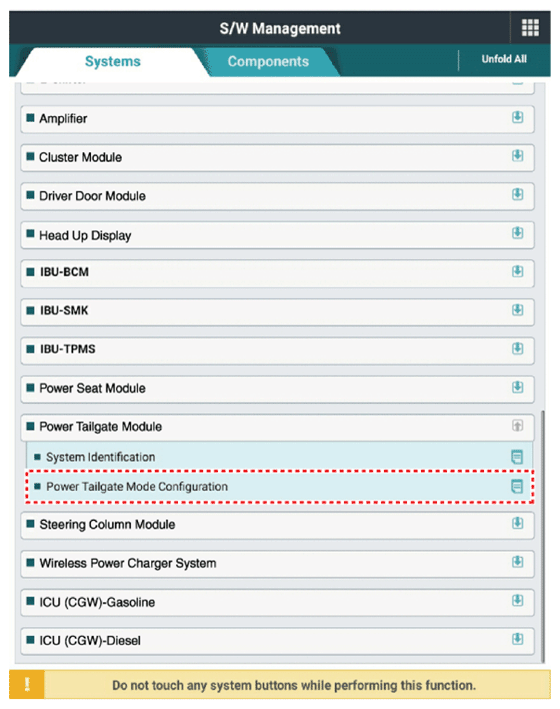

After connecting the KDS, select the "Power Tailgate Mode Change" procedure.

Courtesy of KIA MOTORS AMERICA, INC.

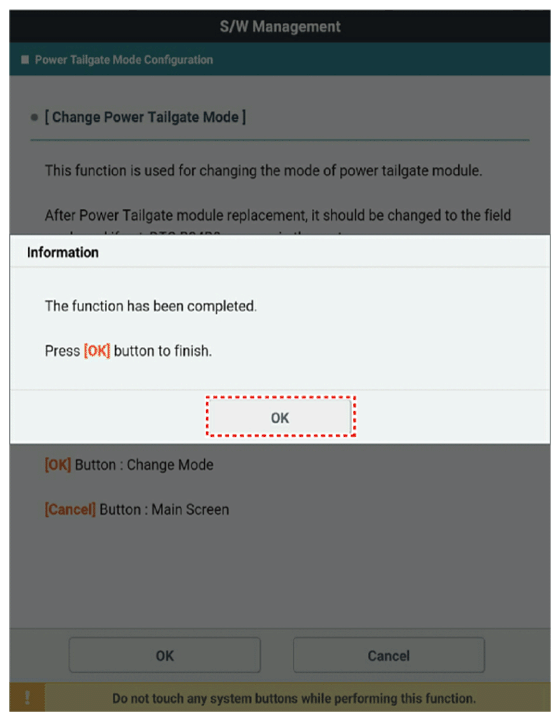

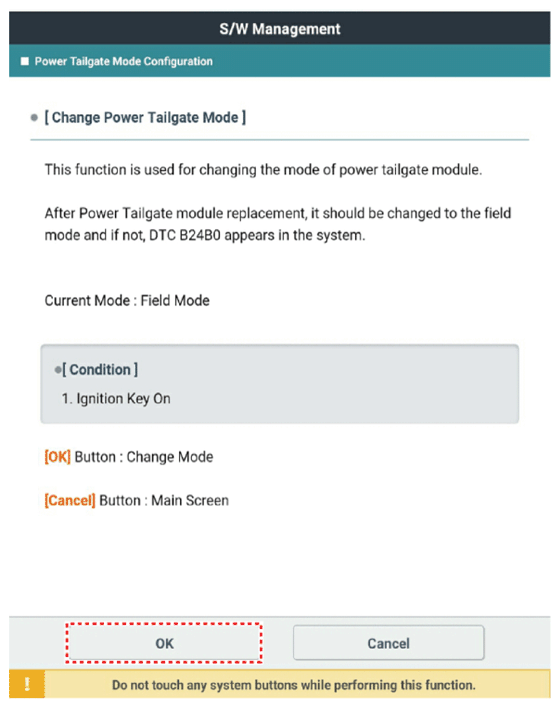

Perform the tailgate mode change procedure according to displayed messages on KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- If power tailgate system is operated with factory mode, it makes the abnormal warning sound.
