[Power Tailgate Outside Handle Switch]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

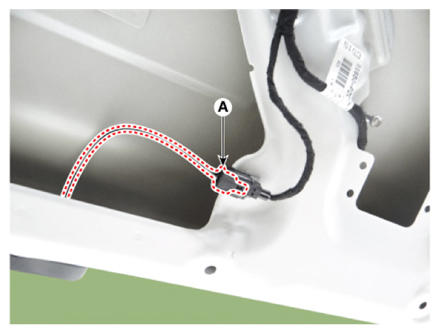

  3. Disconnect the power tailgate outside handle switch connector (A).
    G14958613Courtesy of KIA MOTORS AMERICA, INC.

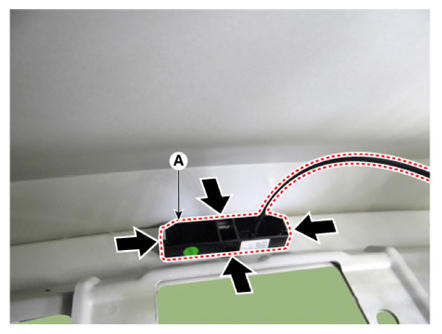

  4. Remove the power tailgate outside handle switch (A) by pushing the clips.
    G14958614Courtesy of KIA MOTORS AMERICA, INC.
