[Power Tailgate Inner Switch]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

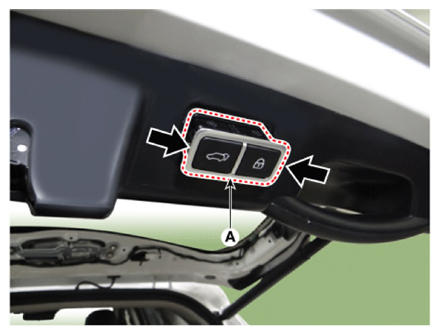

  2. Remove the power tailgate inner switch (A) by using a flat-head screwdriver or remover.
    G14958611Courtesy of KIA MOTORS AMERICA, INC.

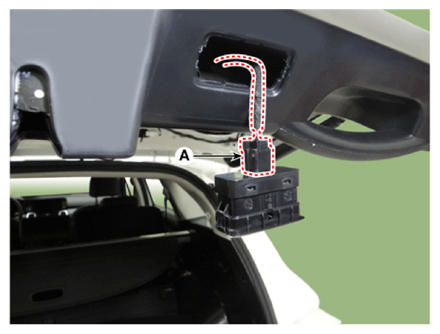

  3. Disconnect the power tailgate inner switch connector (A).
    G14958612Courtesy of KIA MOTORS AMERICA, INC.
