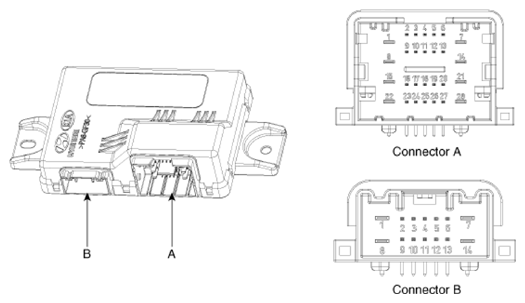

Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function | |
|---|---|---|
| Connector A | Connector B | |
| 1 | Latch motor (-) | - |
| 2 | Tailgate inner switch illumination | - |
| 3 | - | Left spindle shield ground |
| 4 | Buzzer | - |
| 5 | B-CAN_Low | - |
| 6 | B-CAN_High | Left hall sensor power |
| 7 | - | Left spindle motor close (+) |
| 8 | Latch motor (+) | - |
| 9 | - | - |
| 10 | N gear position | - |
| 11 | Inner lock switch | Left hall sensor ground |
| 12 | Left anti pinch sensor power | Left hall sensor 1 |
| 13 | Right anti pinch sensor power | Left hall sensor 2 |
| 14 | - | Left spindle motor close (-) |
| 15 | Motor power | |
| 16 | REF switch | |
| 17 | Full lock switch | |
| 18 | Half lock switch | |
| 19 | - | |
| 20 | Latch switch ground | |
| 21 | System ground | |
| 22 | System power | |
| 23 | Tailgate open/close switch | |
| 24 | Tailgate inner switch | |
| 25 | Home position switch | |
| 26 | Left anti pinch sensor ground | |
| 27 | Right anti pinch sensor ground | |
| 28 | Power ground | |
