Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the fender, wrap protective tape around a flat-head screwdriver or remover not to damage components.

Information

Removing or installing the hood requires an assistant.

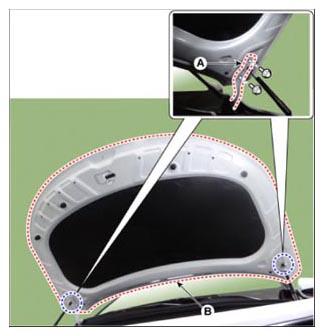

Remove the hood assembly (B) after removing the mounting bolts the hood hinge (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
