Glass Adjustment
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Information
Check the glass run channel for damage or deterioration, and replace them if necessary.

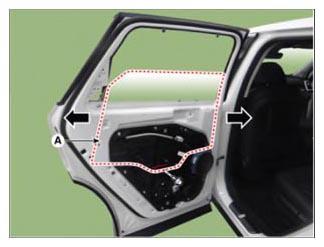

- Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

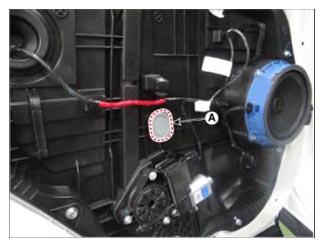

- Remove the mounting plug hole (A) from the rear door module.
- After removing the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolt.
- Check the glass for normal operation.
