Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the rear door window glass.

    (Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

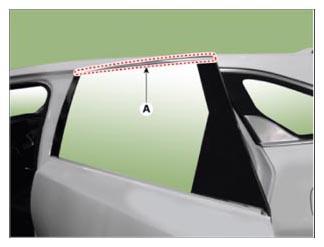

  2. Remove the rear door frame molding (A) by using a flat-head screwdriver or remover.
    G14939990Courtesy of KIA MOTORS AMERICA, INC.

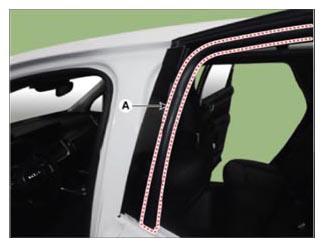

  3. Remove the rear door glass run (A).

    [Front]

    G14939991Courtesy of KIA MOTORS AMERICA, INC.

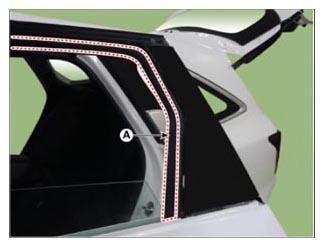

    [Rear]

    G14939992Courtesy of KIA MOTORS AMERICA, INC.

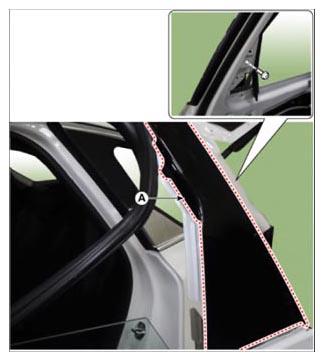

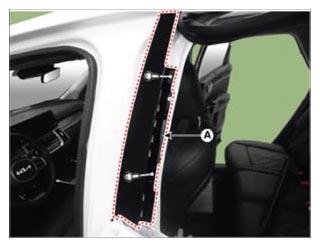

  4. Remove the rear door frame molding (A) by removing the mounting screws.

    [Front]

    G14939993Courtesy of KIA MOTORS AMERICA, INC.
    G14939994Courtesy of KIA MOTORS AMERICA, INC.

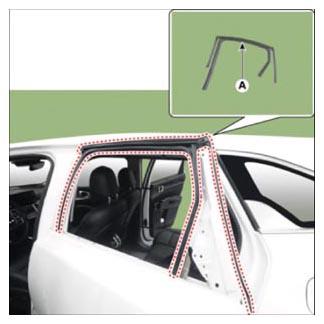

  5. Remove the rear door glass run (A).
    G14939995Courtesy of KIA MOTORS AMERICA, INC.
