Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the rear mud guard
(Refer to Body Side Molding - "REAR MUD GUARD ")

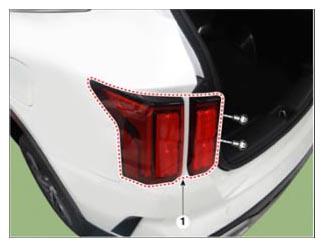

Remove the rear combination lamp (A) by removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

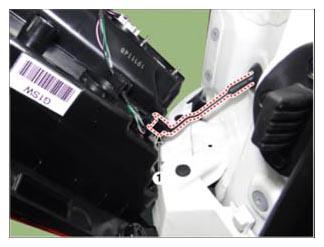

Disconnect the rear combination lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

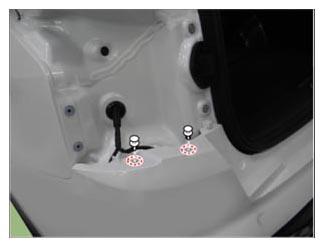

Remove the mounting clips from the front rear bumper upper side.

Courtesy of KIA MOTORS AMERICA, INC.

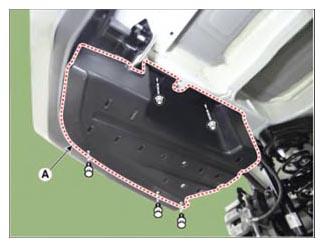

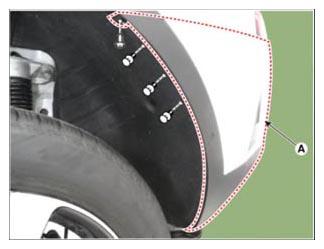

Remove the rear bumper side cover (A) by removing the clips and screw.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the clips from the rear bumper lower side.

Courtesy of KIA MOTORS AMERICA, INC.

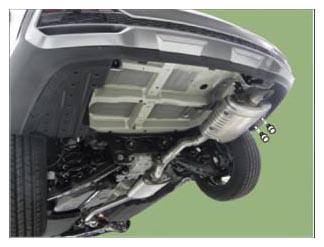

Remove the rear bumper side under cover mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

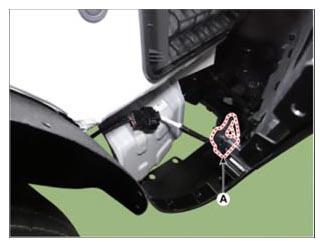

Disconnect the rear bumper main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

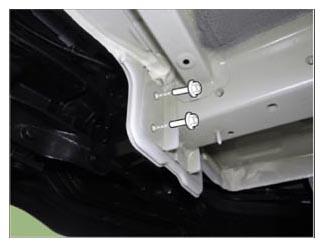

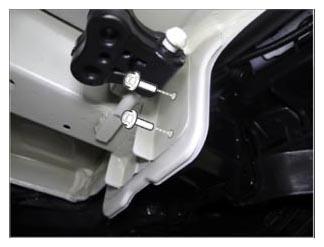

Remove the mounting bolt from the rear bumper both sides.
Tightening torque:

15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

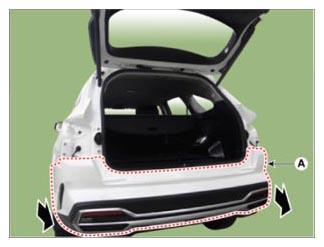

Remove the rear bumper assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
