[Tailgate Lower Trim]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Take care not to scratch the body surface.
  1. Remove the power tailgate switch. (option)

    (Refer to Body Electrical System - "POWER TAILGATE SWITCH ")

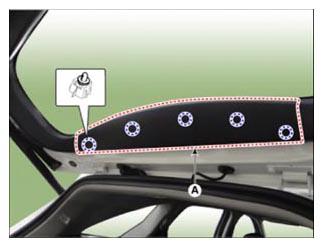

  2. Remove the tailgate upper trim (A) by using a flat-head screwdriver or remover.
    G14939918Courtesy of KIA MOTORS AMERICA, INC.

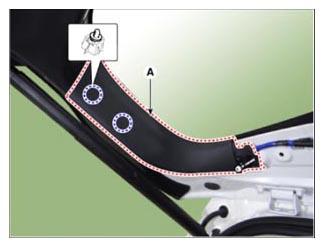

  3. Remove the tailgate side trim (A) by removing the mounting screw.
    G14939919Courtesy of KIA MOTORS AMERICA, INC.

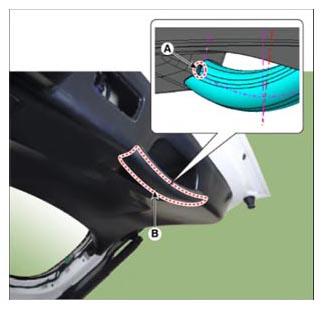

  4. Remove the tailgate grip (B) after using a flat-head screwdriver driver in the service hole (A).
    G14939920Courtesy of KIA MOTORS AMERICA, INC.

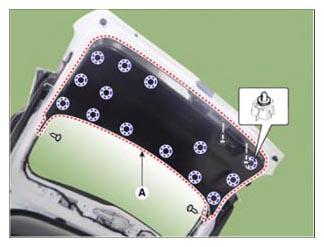

  5. Remove the tailgate lower trim (A) by removing the mounting bolt.
    G14939921Courtesy of KIA MOTORS AMERICA, INC.
