Glass Adjustment

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the glass run channel for damage or deterioration, and replace it if necessary.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

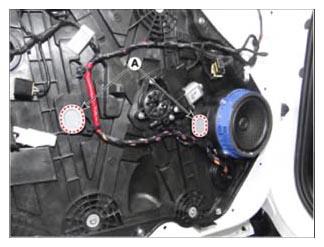

Remove the mounting plug hole (A) from the front door module.

Courtesy of KIA MOTORS AMERICA, INC.

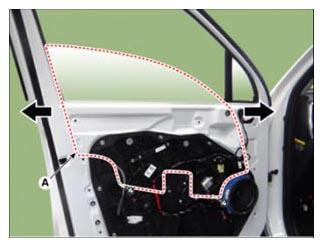

After removing the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

Courtesy of KIA MOTORS AMERICA, INC.
Check the glass for normal operation.
