Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

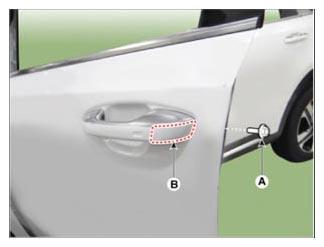

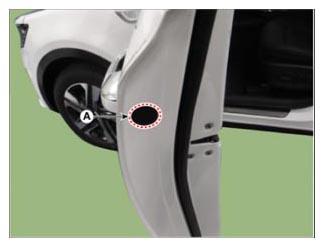

Remove the plug hole (A).

Courtesy of KIA MOTORS AMERICA, INC.

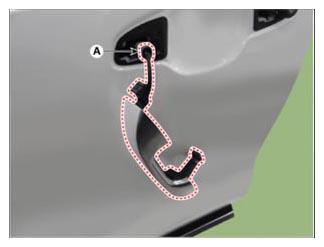

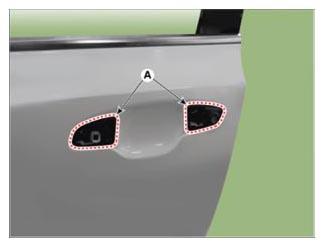

Remove the outside handle cover (B) by removing the mounting bolt (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

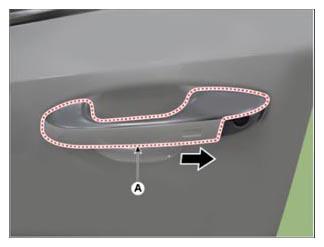

Remove the front door outside handle (A) by sliding it rearward.

Courtesy of KIA MOTORS AMERICA, INC.

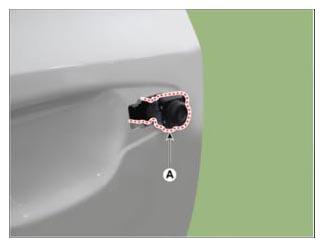

Remove the front door outside handle cover connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Be sure to install the outside handle pad (A) between the outside handle and the door panel.
Courtesy of KIA MOTORS AMERICA, INC.
Remove the door lock assembly (A).
