Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

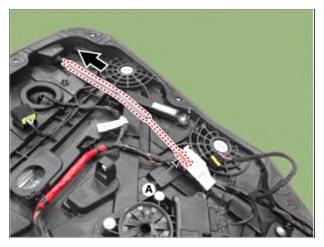

Remove the front door latch connector (A) by pushing it in direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

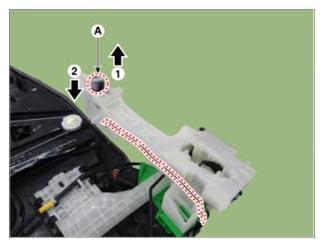

Remove the front door latch road (A) by pushing it in direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

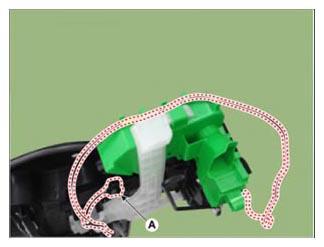

Remove the front door outside handle base (B) by pushing the lock pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front door latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

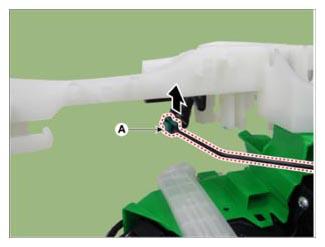

Push the front door handle cage (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

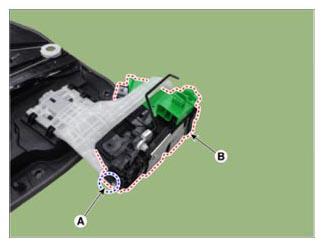

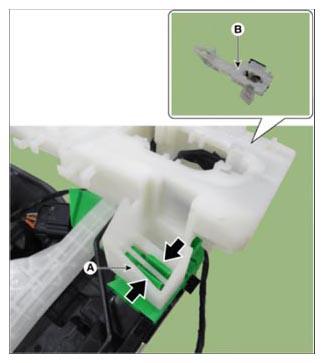

Remove the front door latch (B) by pushing the lock pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
