Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Take care not to bend or scratch the trim and panels.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

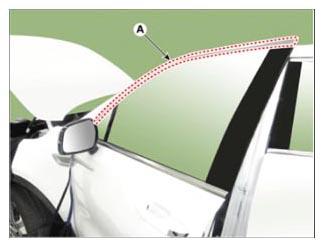

Remove the front door frame molding (A) by using a flat-head screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

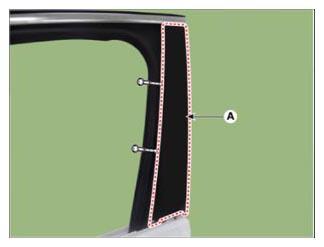

Remove the front door frame garnish (A) by removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

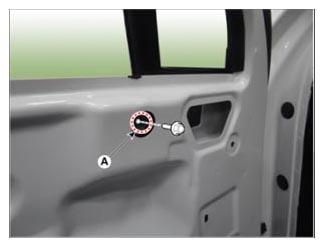

Remove the front door glass run mounting bolt.

Courtesy of KIA MOTORS AMERICA, INC.

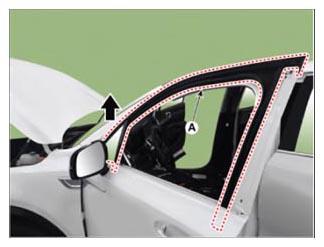

Remove the front door glass run (A) by lifting it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

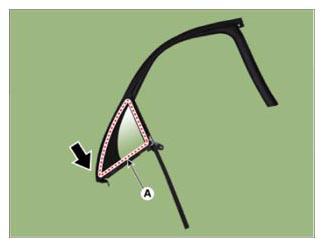

Remove the front door fixed glass (A) by pulling it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to drop the glass and/or scratch the glass surface.
