Parking Distance Warning-Reverse (PDW-R) Sensor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper assembly.

    (Refer to Body - "REAR BUMPER ASSEMBLY ")

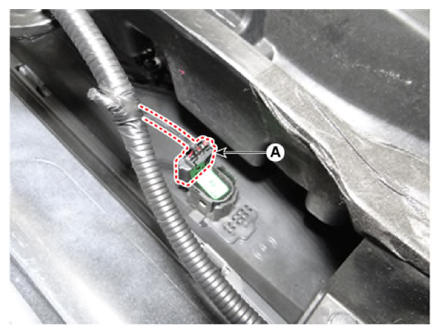

  2. Disconnect the connector (A) from the PDW-R sensor.
    G14959292Courtesy of KIA MOTORS AMERICA, INC.

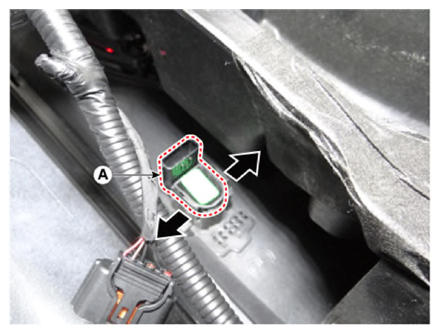

  3. Remove the PDW-R sensor (A) by pushing the sensor holder in the direction of arrow.
    G14959293Courtesy of KIA MOTORS AMERICA, INC.
