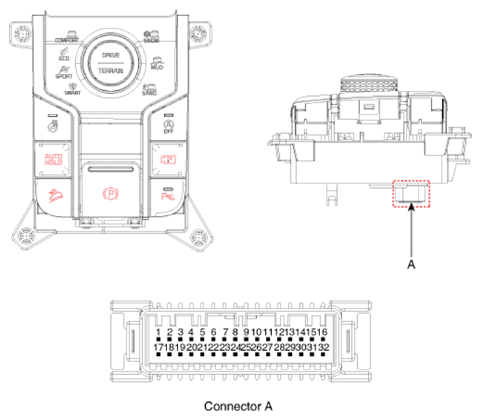

Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function |
|---|---|
| 1 | IGN |
| 2 | Illumination (+) |
| 3 | EV/HEV Signal |
| 4 | Auto Hold Signal |
| 5 | - |
| 6 | PAS/RPAS Signal |
| 7 | SVM/RVM Signal |
| 8 | ISG OFF Signal |
| 9 | - |
| 10 | ISG OFF indicator |
| 11 | DMS Signal (CCW) |
| 12 | Wheel Heater Signal |
| 13 | - |
| 14 | Ground |
| 15 | CAN (High) |
| 16 | CAN (Low) |
| 17 | EPB Switch 1 |
| 18 | EPB Switch 2 |
| 19 | EPB Switch 3 |
| 20 | EPB Switch 4 |
| 21 | Detent |
| 22 | - |
| 23 | Illumination (-) |
| 24 | DBC Signal |
| 25 | PAS/RPAS indicator |
| 26 | - |
| 27 | DMS Signal (CW) |
| 28 | Battery (+) |
| 29 | Wheel Heater Signal |
| 30 | - |
| 31 | - |
| 32 | - |
