Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console upper cover.

    (Refer to Body - "CONSOLE UPPER COVER ")

  2. Operate the PDW on/off switch, then check for continuity between terminals.

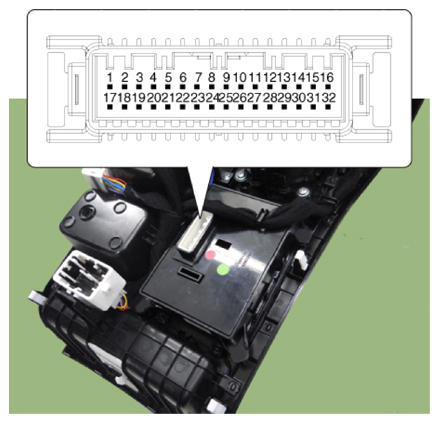

    G14959297Courtesy of KIA MOTORS AMERICA, INC.

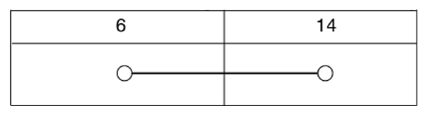

    G14959298Courtesy of KIA MOTORS AMERICA, INC.
