Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

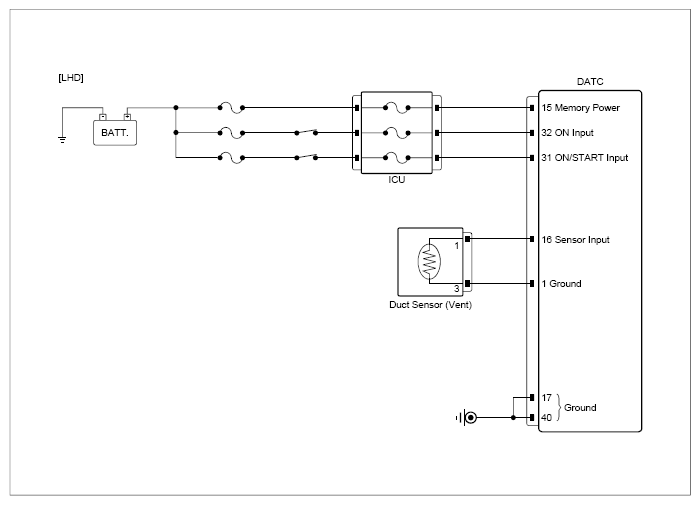

G14963594

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Duct sensor connector (LH VENT)	1 (signal)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Duct sensor connector (LH VENT)	3 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Duct sensor connector (LH VENT)	1 (signal)	A/C control module connector	16 (signal)	Approx. below 1Ω
	Duct sensor connector (LH VENT)	3 (ground)	A/C control module connector	2 (ground)	Approx. below 1Ω
	Duct sensor connector (LH VENT)	1 (signal)	Chassis ground	-	∞ (infinity)Ω
	Duct sensor connector (LH VENT)	3 (ground)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
