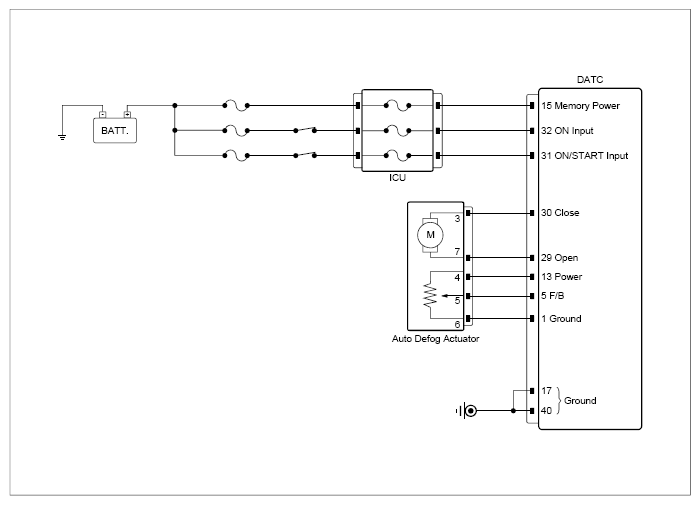

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Auto defog actuator connector | 7 (open) | A/C control module connector | 29 (open) | Approx. below 1Ω |
| Auto defog actuator connector | 3 (close) | A/C control module connector | 30 (close) | Approx. below 1Ω | |
| Auto defog actuator connector | 7 (open) | Chassis ground | - | ∞ (infinity)Ω | |
| Auto defog actuator connector | 3 (close) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
