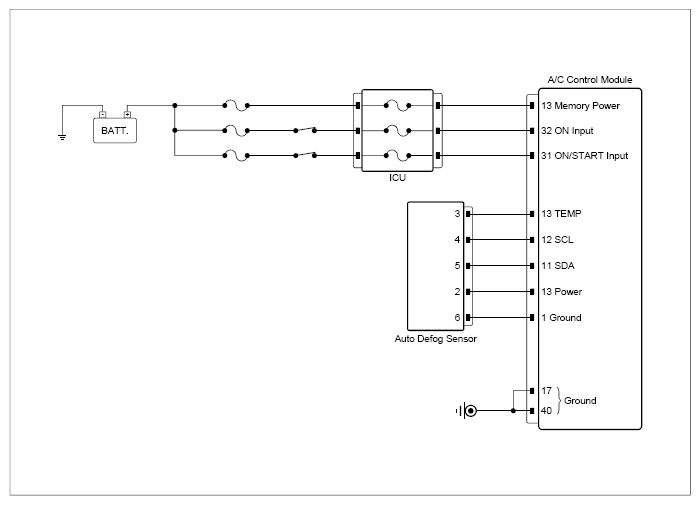

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Auto defog sensor connector | 2 (power) | Chassis ground | - | Approx. 5V |
|
Auto defog sensor connector | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
| Auto defog sensor connector | 5 (SDA) | A/C control module connector | 11 (SDA) | Approx. below 1Ω | |
| Auto defog sensor connector | 5 (SDA) | Chassis ground | - | ∞ (infinity)Ω | |
| Auto defog sensor connector | 4 (SCL) | A/C control module connector | 12 (SCL) | Approx. below 1Ω | |
| Auto defog sensor connector | 4 (SCL) | Chassis ground | - | ∞ (infinity)Ω | |
| Auto defog sensor connector | 3 (TEMP) | A/C control module connector | 13 (TEMP) | Approx. below 1Ω | |
| Auto defog sensor connector | 3 (TEMP) | Chassis ground | - | ∞ (infinity)Ω | |
|

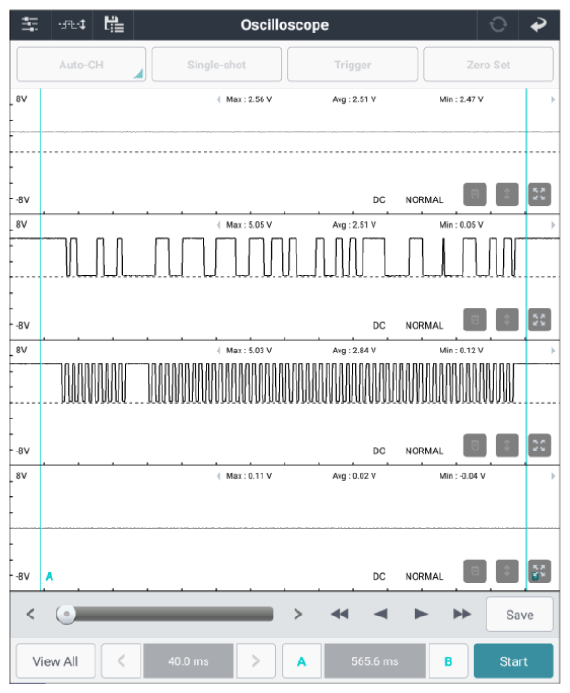

Auto defog sensor connector | 3 (TEMP) | Auto defog sensor connector | 4 (SCL) | Fig.1 |
| Auto defog sensor connector | 5 (SDA) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
- If no problems were found with the circuits or connectors, replace the auto defog sensor and Go to "Verification Of Repair " procedure.
