Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

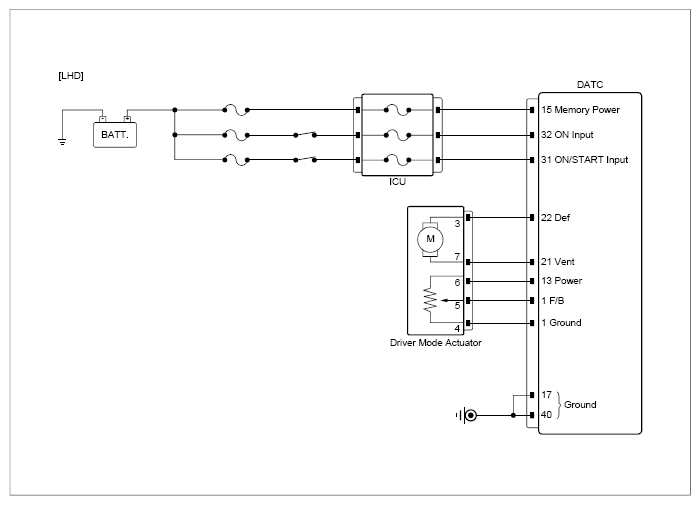

G14963555Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Driver mode actuator connector 6 (power) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 Driver mode actuator connector 4 (ground) Chassis ground - Approx. below 1Ω
Driver mode actuator connector 5 (F/B) A/C control module connector 1 (F/B) Approx. below 1Ω
Driver mode actuator connector 5 (F/B) Chassis ground - ∞ (infinity)Ω

Good

No Good
