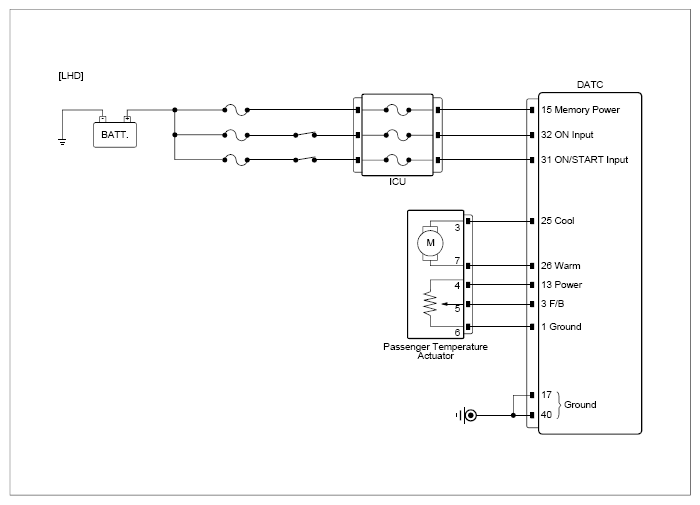

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Passenger temperature actuator connector | 4 (power) | Chassis ground | - | Approx. 5V |
|
Passenger temperature actuator connector | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
| Passenger temperature actuator connector | 5 (F/B) | A/C control module connector | 3 (F/B) | Approx. below 1Ω | |
| Passenger temperature actuator connector | 5 (F/B) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
