R-4. Slanted/leaned During Parking
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Check the camera installation condition.
| OK |
Camera has been operating normally. |
| NG |
Check number 2. |
- Measure the deviation of slanted/leaned during parking.
- SPEC: ± 10cm (Front Wheel-Rear Wheel)
| OK |
Camera is operating normally. |
| NG |
Replace the camera. |
Information

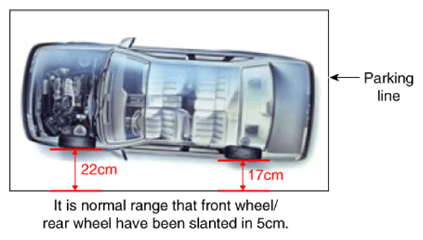

- Check the different distance between front/rear wheel and parking line.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Some slant or lean condition can occur depending on the driver.
